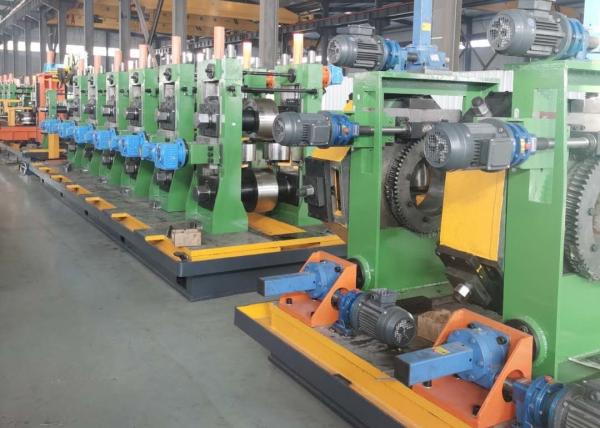

114Mm Quick Change Roller High Frequency Tube Mill Straight Seam Steel

Name: 114Mm Quick Change Roller High Frequency Tube Mill Straight Seam Steel
Brand: TengTian
Price: 100000 USD

Wholesale 114Mm Quick Change Roller High Frequency Tube Mill Straight Seam Steel from china suppliers

Brand Name : TengTian

Model Number : 114

Certification : CE, ISO9001, BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T, D/A, T/T

Supply Ability : 4 Sets/Year

Delivery Time : 300 work days

Packaging Details : Export waterproof and Seaworthy packing.

Product name : High Frequency Welded Pipe Mill 114Mm Quick Change Roller High Frequency Welded Pipe Mill Straight Seam Steel

Equipment Specification : high frequency and precision

Forming method : Roller Squeeze

Warranty : One year

Pipe material : Steel

Pipe shape : round and square

Thickness : 1 . 5 mm - 5 . 0 mm

Pipe diameter : 45 - 114

Raw material : steel

Key words : High Frequency Welded Pipe Mill

Contact Now

Straight Seam Steel 114 Mm Quick Change Roller Pipe Making Mill Equipment High Frequency Welded Pipe Mill

114 Mm Quick Change Roller Pipe Making Mill Equipment High Frequency Welded Pipe Mill Production Introduction and Process

114 high frequency welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Pipe size: 76 - 114 mm Pipe thickness: 1.5 - 4 . 0 mm

Loading car → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Layout table

114 Mm Quick Change Roller Pipe Making Mill Equipment High Frequency Welded Pipe Mill Equipment composition

No.	Name
1	Uncoiler
2	Straightener & leveler
3	Automatic shear and welding
4	Feeder and punching machine
5	Automatic forming and sizing part
6	Cutting machine
7	Packing and palletizing

114 Mm Quick Change Roller Pipe Making Mill Main Parameters and Specifications:

⑴ Material Specifications:

Material	low carbon steel galvanize and crabon steel tube
Mechanical properties	σb≤520Mpa,σs≤340MPa
strip width	230 - 360 mm
strip thickness	1 . 5 - 4 . 0 mm
I.D of Coils	520 - 580 mm
O.D of Coils	1000 - 1600 mm
Coil Weight	≤ 7T

⑵ Welded Pipe Specification

Pipe Diameter	Φ 76～ φ 114 mm
pipe thickness	1 . 5 - 4 . 0 mm
Finish pipe length	4 - 6 m
Cut length accuracy	± 3 mm
Forming speed	40 - 50 m/min

(3)Power, Water & Air Supply

1	Power	Power Volume of the Line	Approx.800KW
		Power Source	415V/50Hz/3phases
2	Circulation Cooling Water	Flow	30T/h～40 T/h
		Pool Volume	60m³
3	Compressed Air	Flow	5m³/min
		Pressure	5～7kg/ cm²

(4) workshop require : 100 m X 6 m ,at least 5m high

Notice:You can modify it according to the actual length of the workshop
