Galvanized Steel 89 Mm Round Tube Mill Machine For 1mm Thick Pipe Making

  • 1
  • 2
  • 3

Brand Name : Tengtian

Model Number : 89

Certification : CE, ISO9001, BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T

Supply Ability : 50 Sets/Year

Delivery Time : 4 months

Packaging Details : Export waterproof and Seaworthy packing.

Production Name : Galvanized Steel 89 Mm Round Tube Mill Machine For 1mm Thick Pipe Making Machine

Forming Method : FFX Forming Technology

Running speed : Max. 60 m / min

Pipe shape : Round

Pipe Diameter : 45 - 102 mm

Max.Thickness for Round Pipe : 1 . 0 - 4 . 0 mm

Welding Type : High Frequency Welding

Key words : Tube Mill Machine For 1mm Thick Pipe Making Machine

Contact Now

Galvanized Steel 89 Mm Round Tube Mill Machine For 1mm Thick Pipe Making Machine

Galvanized Steel 89 Mm Round Tube Mill Machine General Introduction:

HG89 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 45 -- 102 mm Square pipe size: 40 × 40 -- 60 × 80 mm Pipe thickness: 1 . 0 - 4 . 0 mm

As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.

Galvanized Steel 89 Mm Round Tube Mill Machine Specifications:

1. Raw Material

1 Mateairal Low carbon steel and low alloy constructional steel
2 Material properties

σb≤380Mpa,σs≤275MPa
3 ID of the steel strips Φ 508 mm
4 OD of the steel strips Φ 1800 mm
5 Coiler weight Max.6 T

2. Production Range:

Round Pipe φ 45 - 102 mm Thickness: 1 . 0 - 4 . 0 mm

Line composition :

Hydraulic uncoiler
Automatic Shear and welder
Spiral horizontal accumulator
Forming and Sizing Mill
(forming stand+Weld seam guide stand + the squeeze roll stand+welding bead cutter+Water cooling unit+sizing stand+gear box)
Cold saw
Run out table
300Kw High Frequency Welder
Drive system
Zinc spray machine
Electronic control system
Hydraulic system

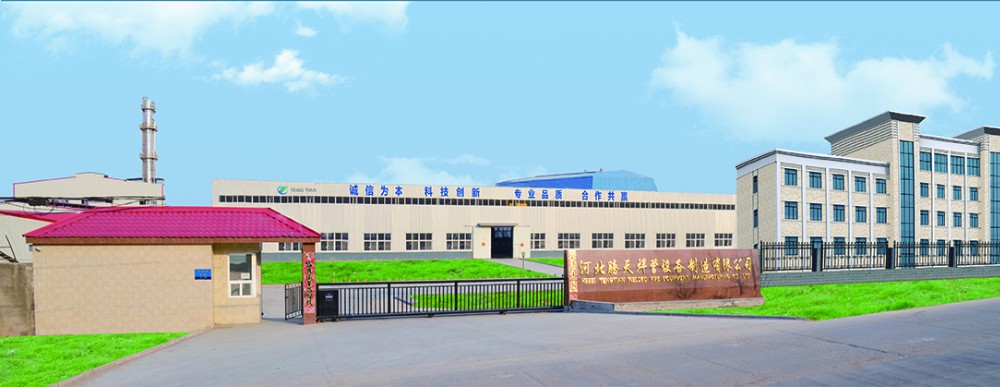

About Us
