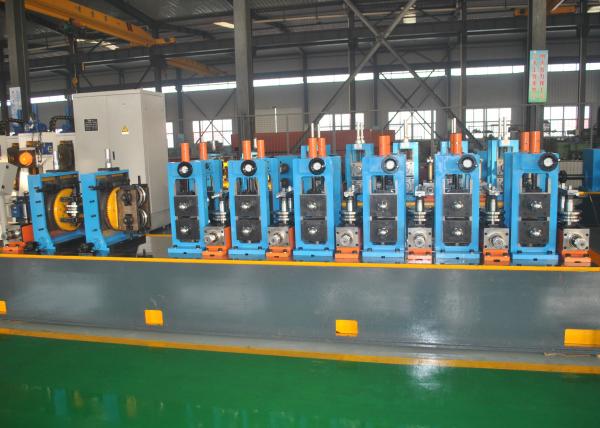

Adjustable Size 20X20mm-60X60mm Carbon Steel Pipe Making Machine Square Tube Mill
1. Adjustable Size 20X20mm-60X60mm Carbon Steel Pipe Making Machine Square Tube Mill General Introduction
60 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Square pipe size: 20X20-60X60mm Rectangular pipe size:20X25-40X80mm Pipe thickness: 1.0-3.0mm
2. Adjustable 20X20-60X60mm Square Tube Mill Carbon Steel Pipe Making Machine Main Parameters and Specifications:
⑴ Material Specifications:
| Material | low carbon steel galvanize and crabon steel tube |
| Mechanical properties | σb≤520Mpa,σs≤340MPa |
| strip width | 80 - 240 mm |
| strip thickness | 1 . 0 - 3 . 0 mm |
| I.D of Coils | 508 mm |
| O.D of Coils | 1800 mm |
| Coil Weight | ≤ 3T |
⑵ Welded Pipe Specification
| Pipe Diameter | 20 X20～ 60X60 mm |
| pipe thickness | 1 . 0 - 3 . 0 mm |
| Finish pipe length | 6 m |
| Cut length accuracy | ± 2 mm |
| Forming speed | 40 - 100 m/min |
⑶ workshop require : 100 m X 8 m ,at least 5m high
Notice:You can modify it according to the actual length of the workshop
3. Technical Document Provided
①Our company provides full set of technical drawings and operating instructions for maintenance.
②About technical principle and use and maintenance of the equipment, can hold a technical training class for the buyer free of charge.
③Train technicians of the buyer free of charge, providing guidance from the whole process of operation, production, debugging and installation.
④Once the equipment is accepted, the supplier shall leave a technician to monitor the equipment for 3 days.
⑤Within one year after receiving the equipment, the supplier is responsible for solving the abnormal quality of the equipment freely, and the response time is less than 24 hours (except for irresistible factors).
⑥After 1 year of acceptance, the maintenance cost shall be charged by the supplier until the service life of the equipment. The maintenance cost shall be composed of the traveling cost of the maintenance personnel, the salary during the absence, and the cost of replacement parts.
⑦The supplier shall be obliged to answer the technical questions related to the operation, maintenance and use of the equipment in detail within the service period of the equipment without violating the technology leakage.
